High Level Water collection greatly lowers static head and noise compared to regular cooling towers. This design gathers water at the packing base, so it removes the deep sump and cuts the vertical lift. The shorter drop distance also reduces noise levels. Engineers get these benefits from a simpler water path that sends cooled water straight to the pump suction. This setup saves a lot of pump energy. The smaller rain zone height also helps lower sound. These perks make High Level Water systems appealing for facilities that care about energy. The next parts look at both system types, compare static head in detail, study noise differences, and give tips on choosing.
High Level Water collection cuts pump static head by up to 50%, saving big on energy costs.
This design cuts noise by 3–5 decibels because it shortens the water drop distance and adds pads that soak up sound.
Conventional towers are cheaper to buy at first, but they use more energy and make more noise as time goes on.
The money saved on electricity bills over time often covers the higher upfront cost in just a few years.
Two main designs dominate industrial cooling tower construction. Each one collects water in a different way, and that difference affects energy use and noise levels. Knowing how each system is built helps explain why they perform so differently.
High Level Water collection gets rid of the usual bottom sump completely. Instead, it places a collection basin right under the packing material. Cooled water drops through the fill, lands in this raised basin, and moves straight to the pump suction port. This setup removes the deep pit seen in regular towers and shortens the vertical distance water has to travel.
The design depends on several key parts working together:
Component | Description |
|---|---|
Warm water basin | Placed at the top of the tower; used on crossflow towers to feed water into the fill pack. Made from stainless steel or galvanized material to stop corrosion. |
Warm water basin guard filter | Sits on top of the basin to filter water flowing down through the fill pack. Removes debris and scale before water enters nozzles, reducing blockages, cleaning needs, and protecting pump impellers. |
Special angled plates catch spray water while it falls. These plates grab droplets and guide them sideways into the collection basin. This catching shortens the drop distance, which lowers both pump head needs and water spray noise. The splash pad under the packing also works as a sound-absorbing surface.
A conventional cooling tower gathers water in a large sump at the tower's base. Water flows through the fill, drops through an open rain zone, and collects in this deep basin. The pump then pulls water from the sump and sends it back to the top of the tower. This design has been used for years because it is simple and costs less upfront.
The sump design directly affects pump needs:
Design Aspect | Typical Value | Effect on Static Head |
|---|---|---|
Pump position relative to sump | At or below basin level | Ensures flooded suction, converting basin water level into positive static head at pump inlet |
Minimum basin water level above pump centerline | 12–18 inches (0.3–0.46 m) | Creates a static head of 0.3–0.46 m of water, providing adequate NPSHa and preventing cavitation |
The open rain zone creates a long free-fall path for water. This longer drop makes a lot of noise as water hits the sump surface. Regular open-basin towers make about 10 decibels of noise from water falling into the sump alone. That sound becomes a big issue for sites near homes or places that need quiet.
Static head is the vertical distance a pump must push water upward. This number directly affects how much energy the pump uses. When static head is higher, the pump has to work harder and uses more electricity. The key difference between High Level Water collection and conventional designs becomes obvious when engineers look at this important factor.
Seagull's High Level Water Cooling Tower removes the bottom sump completely. Water gathers at the base of the packing material instead of dropping into a deep basin. This raised collection point sits much closer to the pump suction port. The vertical lift drops sharply, reducing static head substantially compared to conventional towers.
The rain zone height is very important in this reduction. Conventional towers have an open rain zone where water falls freely from the fill to the sump below. This distance can be several feet. High Level Water designs use special angled plates to catch spray water as it falls. These plates grab droplets and direct them sideways into the collection basin. This catching shortens the effective drop distance a lot.
Think about a typical installation. A conventional tower might need a pump to lift water a significant distance from the sump to the distribution system. A High Level Water tower doing the same job might only need a much shorter lift. That difference means a huge reduction in required pump head. The pump moves the same amount of water but uses much less energy to do it.
Removing the deep sump also gets rid of the need for the pump to push against the weight of water above the suction inlet. In conventional designs, the water level in the sump creates extra pressure the pump must handle. High Level Water systems avoid this problem completely. Water flows straight from the packing base to the pump suction with very little resistance.
Lower static head directly means reduced pump energy use. Pump power needs follow a simple rule: less head means less work. A pump working against substantially less static head can use much less electricity for the same flow rate. This saving adds up over thousands of operating hours each year.
The financial impact is significant. Industrial cooling towers often run all the time. A facility running a 100-horsepower pump against reduced head might save tens of thousands of dollars each year. These savings usually pay back the higher initial cost of High Level Water systems within a few years.
Smaller pump sizing is another design benefit. Engineers can choose a smaller pump when static head decreases. Smaller pumps cost less to buy and install. They also take up less space, making the mechanical room layout simpler. The reduced pump size lowers maintenance needs and extends equipment service life.
System design benefits go beyond the pump itself. Piping runs are shorter because the collection point sits closer to the pump suction. Shorter piping reduces friction losses and material costs. Removing the deep sump also makes foundation work easier. Contractors avoid digging a large pit, which lowers civil construction costs and shortens project timelines.
Design Parameter | Conventional Tower | High Level Water Tower |
|---|---|---|
Collection point | Deep sump at ground level | Raised basin at packing base |
Typical static head | Higher | Lower |
Rain zone height | Longer | Shorter |
Pump size required | Larger | Smaller |
Annual energy cost | Higher | Lower |
The lower rain zone height also improves hydraulic efficiency. Water spends less time falling through open air, which cuts evaporation losses and drift. This efficiency gain further lowers operating costs. The mix of lower static head, smaller pump, and reduced water losses makes High Level Water systems attractive for energy-conscious facilities.
Engineers comparing both options should calculate total lifecycle costs. The initial price of High Level Water equipment runs higher because of the raised basin and angled collection plates. However, the operating savings from reduced pump energy usually justify this premium. Facilities planning for long-term operation benefit most from this design approach.
Cooling tower noise is a big problem for facility managers, especially when towers are near homes or offices. Knowing where the sound comes from helps engineers pick the right design. Conventional towers and High Level Water systems make very different sounds because of how they are built.
Conventional cooling towers make noise from several different places. Fan noise is usually the loudest part. Large axial fans move huge amounts of air and create a lot of noise as the blades cut through it. Motor hum adds a steady low-pitched sound. Water falling through the open rain zone makes splash noise that adds a lot to the total sound. In district cooling systems, this water splash and drip noise is just as important as fan noise.
Noise Source | Typical Decibel Level |
|---|---|
Fan noise | 80–85 dBA at the tower |
Water-cascade noise | 80–85 dBA at the tower |
A real case study from a shopping mall cooling tower fix gives a direct number: before sound treatment, the noise at a 10-meter distance was 75 decibels (dB). This is a normal starting point for an unchanged conventional cooling tower fan at that distance. Counterflow towers are usually louder than crossflow towers because water falls farther from the bottom of the fill into the collection basin. The longer drop creates more impact energy when droplets hit the sump surface.
Engineers use several ways to control conventional tower noise. Placing towers away from sensitive areas helps. High-efficiency fans with regular upkeep reduce mechanical noise. Sound barriers and acoustic louvers block fan noise but still let air flow. Vibration isolation mounts cut structure-borne sound. Regular water treatment stops scaling that makes flow noise worse. Soundproofing enclosures absorb and hold in sound. Talking with nearby residents keeps them informed about noise control efforts.
Mitigation Method | Key Design/Implementation | Reported Effectiveness |
|---|---|---|
Impedance composite muffler | Combines sound absorption and reflection elements | Wide-band noise reduction across frequencies |
Acoustic guide vanes | Installed at air inlet; compact structure | Up to 35 dB(A) reduction; 15-20 dB(A) achievable |
Noise barrier | Height equals distance to air inlet; fan-shaped top absorber | 10-15 dB(A) typical; theoretical max ~20 dB(A) |
Falling water energy dissipation | Hexagonal honeycomb inclined tubes | Reduces noise at source; relatively small reduction |
Seagull's high level water cooling tower fixes the noise problem right where it starts. The design uses special inclined plates to catch spray water as it falls from the packing. These plates grab droplets and guide them sideways into the collection basin. This catching directly shortens the falling distance of water, which greatly lowers the noise from water spray. The inclined plates do two jobs: they collect water for good pump suction and also shorten the rain zone height, which lowers the overall noise level.
The shorter rain zone height gives another sound benefit. The splash pad under the packing also works as a sound-absorbing pad. Water hits this pad with much less force than it would in a conventional tower with a deep sump. This design substantially reduces noise compared to conventional towers, providing a noticeable improvement for nearby listeners.
The High Level Water approach removes the deep sump splash that causes much of the noise in conventional towers. Water no longer falls several feet into a large basin. Instead, it travels a short distance from the packing base into the raised collection basin. This shorter path means less kinetic energy builds up during the fall, so there is less impact noise on landing. The mix of inclined plate catching, shorter rain zone height, and sound-absorbing splash pads creates a clearly quieter cooling solution. Facilities near homes or offices gain a lot from this sound improvement without losing cooling performance.
High Level Water collection eliminates the deep sump and shortens the rain zone, reducing static head substantially. This reduction lowers pump energy costs substantially. The shorter water fall distance and sound-absorbing splash pads substantially reduce noise compared to conventional towers.
Conventional towers offer simpler construction and lower upfront costs. However, they carry higher operating expenses and produce more noise. Facilities near residential areas or with strict energy budgets benefit most from High Level Water systems. Long-term savings justify the premium investment:
Annual savings reach $135,000–$275,000 for a 10 MW data center
Lifecycle savings total $2–5 million over 10–20 years
Budget-constrained projects with less sensitivity to noise may still prefer conventional designs. Engineers should consult a specialist like Seagull to evaluate specific project requirements.
A High Level Water system can substantially reduce static head. This means the pump does less work and uses less electricity. A 10 MW data center could save $135,000 to $275,000 each year. These numbers make this technology a good choice for facilities that use a lot of energy.
Yes, for most long-term operations. The initial price is higher because of the raised basin and angled collection plates. But the savings on electricity usually pay back that extra cost within a few years. Over 10 to 20 years, total savings can reach $2 to $5 million.
This design substantially lowers noise compared to conventional towers. Inclined plates catch falling spray water, so the drop distance is shorter. The splash pad also works as a sound-absorbing surface. For people nearby, this reduction provides a noticeable improvement.

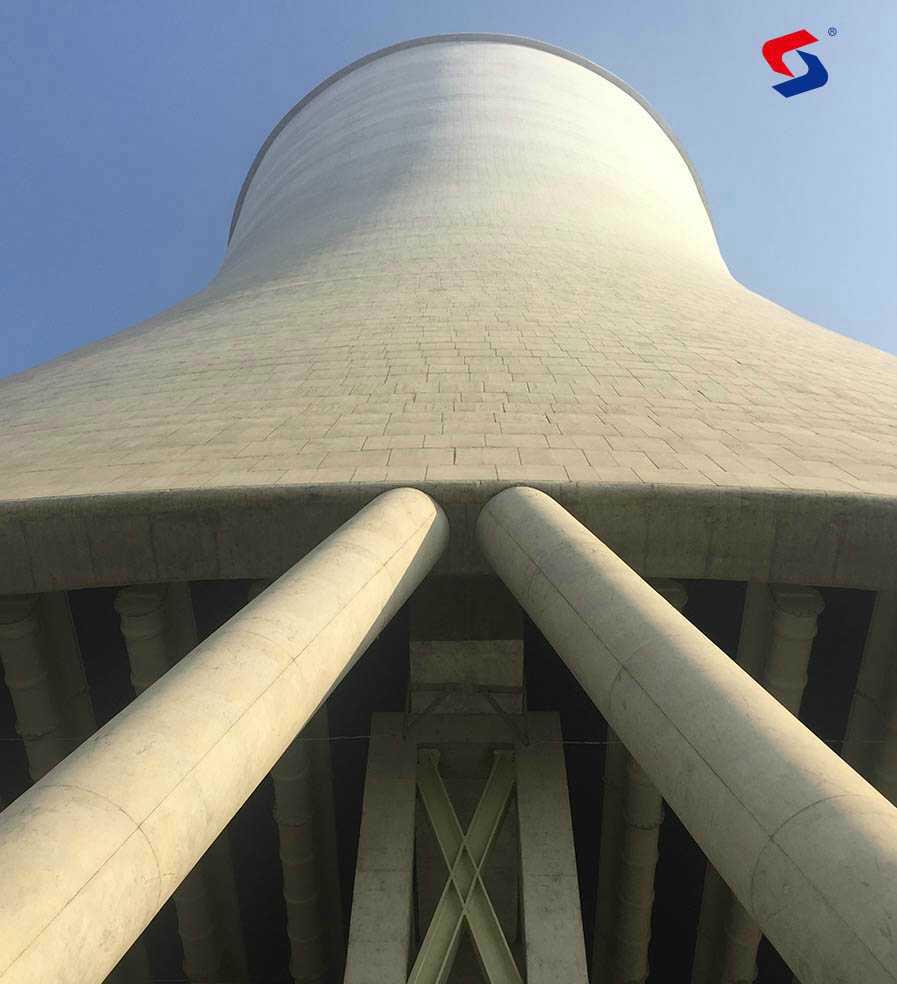

Facilities near homes or offices gain the most from lower noise levels. Energy-sensitive operations like data centers and large industrial plants benefit from reduced pump costs. Natural ventilation cooling towers fit this technology especially well because of their size.
Most facilities recover the higher initial cost within a few years of operation. The exact payback period depends on local electricity rates and operating hours. Facilities running pumps all the time see faster returns. Engineers should calculate total lifecycle costs when comparing both options.
